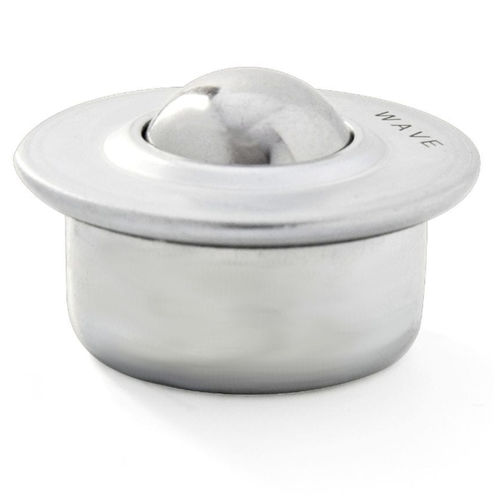

Steel ball transfer unit KU-22

cylindrical base

Transport ball with a collar in a pressed-in version with the symbol KU. The ball transfers a load of up to 40 kg no faster than 1 meter per second. The housing is pressed from sheet steel and then protected against atmospheric factors by galvanizing, significantly extending its durability. High-quality steel balls are pressed inside the housing, which facilitates smooth movement of components on the ball table top. The ball should be mounted in ball tables in cut-out holes. If necessary, it is possible to secure the ball element against falling out with an external 37 mm seeger. • Libra : 0.114 kg • Ball material : steel • Fixing method : pressed • Ball diameter in mm : 22 • Ball load capacity in KG : 40
