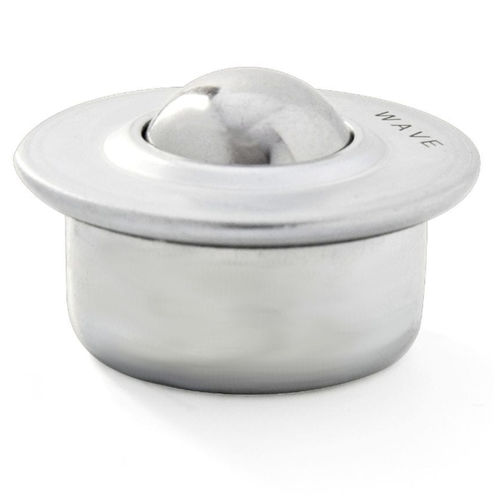

Steel ball transfer unit KU-08

cylindrical base

Transport balls with a collar in a pressed version with the symbol KU. The ball transfers a load of up to 5 kg no faster than 1 meter per second. The housing is pressed from sheet steel, then protected against atmospheric factors by galvanizing, significantly extending its durability. High-quality steel balls are pressed inside the housing, which facilitates smooth movement of components on the ball table top. The ball should be mounted in ball tables in cut-out holes. • Libra : 0.005 kg • Ball material : steel • Fixing method : pressed • Ball diameter in mm : 8 • Ball load capacity in KG : 5
