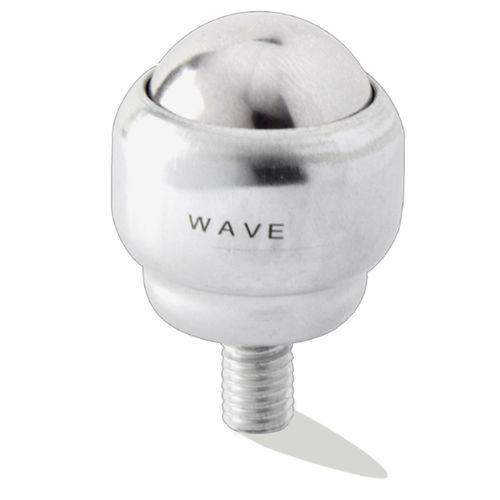

Steel ball transfer unit KU-25 T

with sheet steel housing

Transport balls on a lightweight version pin with the symbol KU-T. They are often used ball elements with base mounts used for non-demanding work. The ball transfers loads up to 35 kg no faster than 1 meter per second. The housing is pressed from sheet steel then protected from atmospheric factors by galvanizing significantly extends its durability. Inside the housing pressed steel balls facilitate the movement of components on the ball table top. Transport balls are designed for mounting in threaded holes or through holes, securing with a nut from the bottom. Additional information Libra - 0.12kg Ball material - steel Fixing method - on the pin Ball diameter in mm - 25 Ball load capacity in KG - 35
