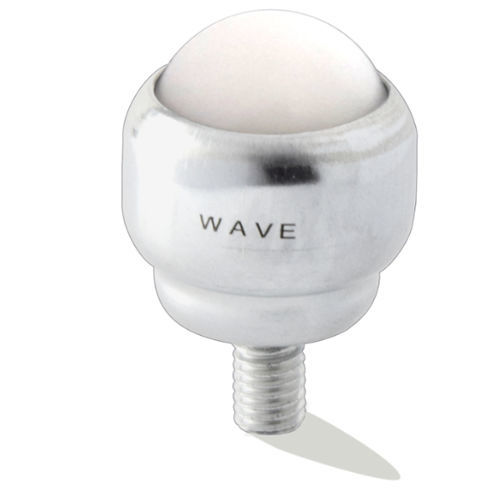

POM ball transfer unit KU-19 TP

with sheet steel housing

Transport balls on a lightweight version stem, symbol KU-TP, with a plastic ball. They are often used ball elements with base mounts used for non-demanding work. The ball transfers loads of up to 15 kg no faster than 0.25 meters per second. The housing is pressed from sheet steel and then protected from atmospheric factors by galvanizing, significantly extending its durability. Inside the housing, a pressed plastic ball (POM) ensures quiet movement of the components on the ball table top. Transport balls are designed for mounting in threaded holes or through holes, securing with a nut from the bottom. Additional information Libra - 0.025 kg Ball material - plastic Fixing method - on the pin Ball diameter in mm - 19
