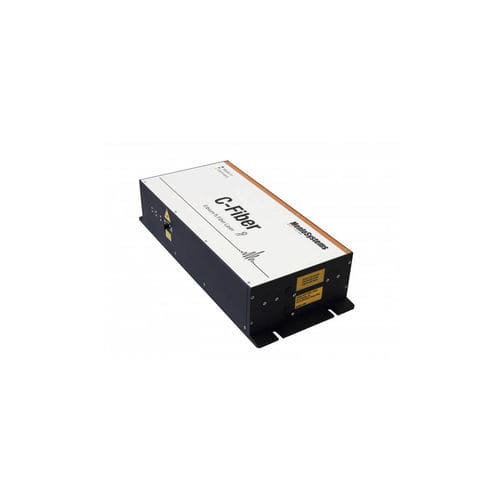

Femtosecond laser module C-Fiber series

fibervisiblemachine vision

Menlo Systems’ fiber-based femtosecond laser sources integrate the latest achievements in fiber technology into easy-to-use products. Menlo Systems’ unique figure 9® design results in reproducible and long-term stable operation. It is based on the well-established Nonlinear Amplifying Loop Mirror (NALM) mode locking mechanism. Both oscillator and amplifier use polarization maintaining (PM) fiber components only, ensuring excellent stability and low-noise operation. The laser is maintenance free, user installed and ready to use at the press of a single button. Customize your laser with the available options to match the requirements of your application. Complete synchronization solution is available with laser and synchronization electronics. All components from one supplier with full automation guarantees hands off operation and more time for your experiments. • Lowest Amplitude and Phase Noise • Single Mode-Lock State with all PM solution • Multicolor output ports on request with arbitrary splitting ratios of output power • Repetition Rate 50-250 MHz • Large tuning range of the repetition rate with typically 400kHz @ 100MHz (Sync Option) • Complete synchronization solution available: laser + synchronization electronics (all components from one supplier) with full automation → hands off operation • Repetition rate synchronization at all frequencies • Additional seed ports for later upgrade • Ultrafast Spectroscopy • Supercontinuum Generation • Material Characterization • Testing at Telecom Wavelengths
