Optical spectrometer TERA series

opticalelectronicsfast

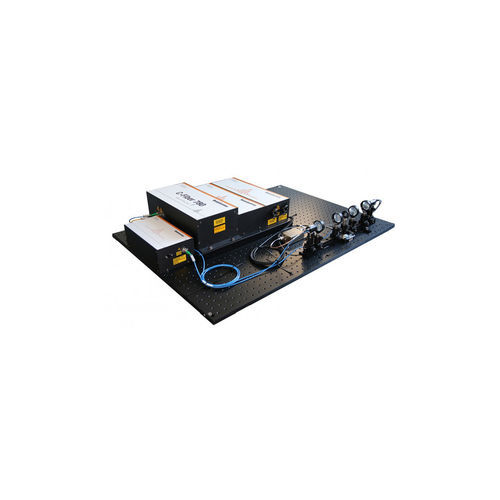

The Menlo Terahertz product portfolio (THz, also known as millimeter waves) covers time domain solutions in traditional pump-probe configurations, as well as solutions for imaging. The products for the time domain are ideally suited for fingerprint spectroscopy whereas the imaging instruments find their use in quality control and inspection. TERA K15 The TERA K15 fiber-coupled terahertz spectrometer provides a complete solution for fast broadband time-domain THz spectroscopy, offering maximum flexibility for scientific THz applications. The system includes our latest figure 9® femtosecond laser source at 1.5 μm emission wavelength, fiber-coupled optical light path with delay line, a THz wave path with THz Emitter, THz detector and TPX THz optics, control electronics and a PC with data acquisition and evaluation software. The delay line offers flexibility by covering a standard scan window of >850 ps enabling a high spectral (THz) resolution below 1.2 GHz. Customers demanding superior spectral resolution (1600 ps). The dual detector option offers simultaneous measurements in transmission and reflection geometry.
