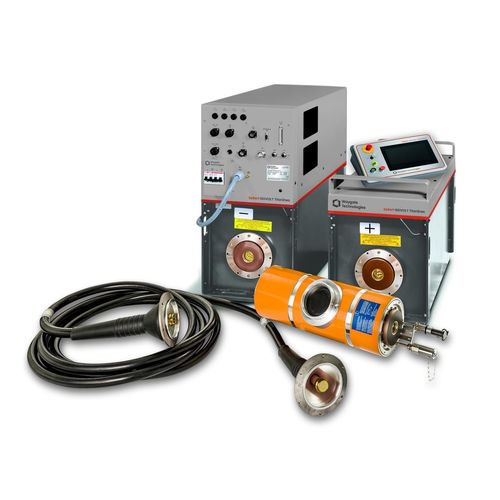

High-power X-ray tube ISOVOLT

portable

Waygate Technologies' X-ray tube portfolio covers most industrial applications. In combination with Seifert ISOVOLT generators and high voltage cables, you can benefit from Waygate Technologies' solutions for radiographic and radioscopic inspections. The Seifert ISOVOLT portfolio also offers solutions for radiometric applications and dosimetry. Directional Exposure Maximum tube voltage/amount of focal spots/maximum anode dissipation/focal spot size 100 kV 1 focal spot 1,500 W / 3 mm 160 kV 1 focal spot 320 W / <0.5 mm 160 kV 2 focal spots 640 W / 1 mm each 160 kV 2 focal spots 1,000 W / 1 mm each 160 kV 2 focal spots 800 W / 0.4 mm & 1,800 W / 1 mm 160 kV 2 focal spots 640 W / 1 mm & 1,600 W / 3 mm 160 kV 2 focal spots 640 W / 1 mm & 3,000 W / 5.5 mm 225 kV 1 focal spot 320 W / <0.5 mm 225 kV 2 focal spots 640 W / 1 mm each 225 kV 2 focal spots 800 W / 0.4 mm & 1,800 W / 1 mm 225 kV 2 focal spots 640 W / 1 mm & 1,600 W / 3 mm 225 kV 2 focal spots 640 W / 1 mm & 3,000 W / 5.5 mm 320 kV 2 focal spots 800 W / 0.4 mm & 1,800 W / 1 mm 320 kV 2 focal spots 640 W / 1.9 mm & 1,600 W / 3.6 mm 320 kV 2 focal spots 1,500 W / 3 mm & 4,200 W / 5.5 mm 450 kV 2 focal spots 700 W / 0.4 mm & 1,500 W / 1 mm 450 kV 2 focal spots 900 W / 2.5 mm & 4,500 W / 5.5 mm Panoramic Exposure Maximum tube voltage/maximum anode dissipation/focal spot size 160 kV / 1,000 W / 4 mm x 4.0 mm
