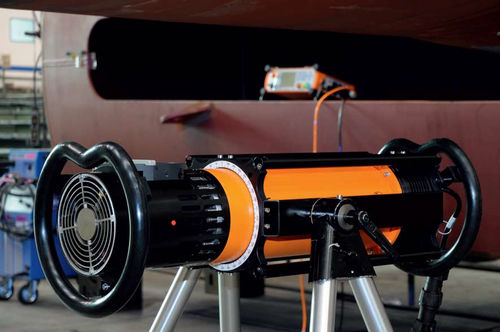

Portable X-ray generator ERESCO MF4

The portable industrial X-ray generators Seifert ERESCO MF4 are designed for the world's most demanding and difficult conditions. Regardless of whether it is under very cold or hot conditions between -20°C to +50°C, after impulses (such as from falls) or in a very dusty, damp, oily and dirty environment – Seifert ERESCO generators withstand and deliver thanks to their very robust construction reliably their performance. Due to a special warm-up of the filament, Seifert ERESCO MF4 can ramp up the output more quickly and enable a high X-ray dose with the shortest exposure times, which leads to higher productivity. Likewise, the different ERESCO types each offer the largest operative bandwidth from 5 kV up to maximum operation voltage with a current range of 0.5 mA to 10 mA - leading in the industry. The large usable current range helps to reduce the exposure time by up to 45% - especially with low-density materials (such as aluminum, composites, and plastics). The modern, compact electronics are responsible for this, which minimizes the weight and, together with a robust metal-ceramic X-ray tube, offers a high output power with extremely low ripple ±1% - available with focal spot diameters of 1 mm and 3 mm and as a panoramic exposure. The ERESCOs with a focal spot diameter of 1 mm enable better geometric magnification with a focal spot that is 3 times smaller for film and digital radiography-based weld seam inspection.
