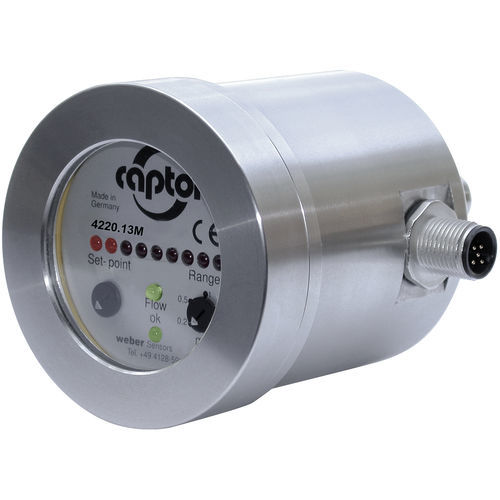

Calorimetric flow sensor 4220.xxF/.xxTM xx °C

volumeruggedfor liquids

The flow-captor type 4220.1xF/.1xT M xx °C is ideally suited for use in automation processes and other industrial applications where both the flow and the temperature of the medium need to be monitored. The sensor operates according to the calorimetric measuring principle and without mechanically moved parts. The sensor detects the flow velocity and the medium temperature and converts both into electrical signals. • robust stainless steel construction (M) • precise switching sensor • separate adjustment of flow range and flow switching point • factory setting of the temperature switch-point according to customer’s specification • analog display of present flow speed and display of adjusted flow set-point via LED chain • LED display of operating status • ISO 9001:2015 flow switch for water based media in a rugged stainless steel housing (full encapsulation) with simultaneous monitoring of flow and temperature Measuring range: 0 - 20 cm/s to 0 - 300 cm/s, continuously adjustable Medium temperature: -20 °C to +80 °C / -4 °F to +176 °F Set-point temperature: 50 °C, 70 °C, 80 °C / 122 °F, 158 °F, 176 °F, factory set (other set-points on request) Operating voltage: 18 - 30 VDC
