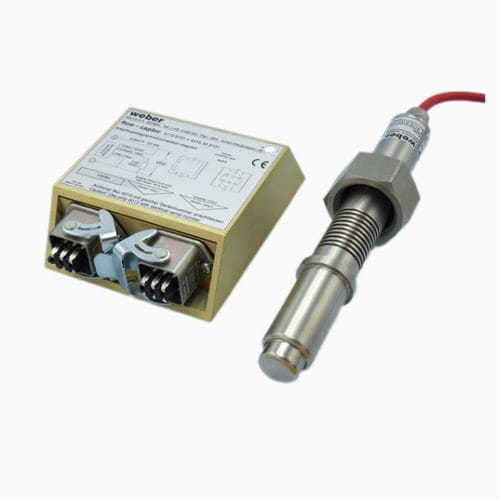

Calorimetric flow sensor 4115 S101 + 4015.3x S101

volumefor liquidsfor process monitoring

The flow-captor type 4115 S101 + 4015.3x S101; ideal for all measurement and control tasks within automation processes or other industrial applications where liquid media must be controlled. Remote systems are used, for example, where due to a higher medium temperature the electronics must be placed separately from the sensor. The system works according to the calorimetric measuring principle, which enables the adjustment of the measuring range to a large quantity spectrum. The flow-captor works fully electronically and without mechanically moving parts. The sensor detects the flow velocity of the medium and converts it into an electrical signal. precise flow measurement adjustable measuring range medium temperature up to 275 °F analogue current output 4 – 20 mA or voltage output 0.1 – 10 V robust industrial construction (special potting of sensor head and electronics) ISO 9001:2015 flow meter for water based media (remote electronic and sensor) in a rugged industrial design (special potting of sensor head and electronics) Measuring range: 0 - 20 cm/s to 0 - 200 cm/s, continuously adjustable (other measuring ranges on request) Medium temperature: up to 135 °C / 275 °F Electrical output: 4 - 20 mA (4015.30) or 0.1 - 10 V (4015.31) Supply voltage: 18 - 30 VDC standard
