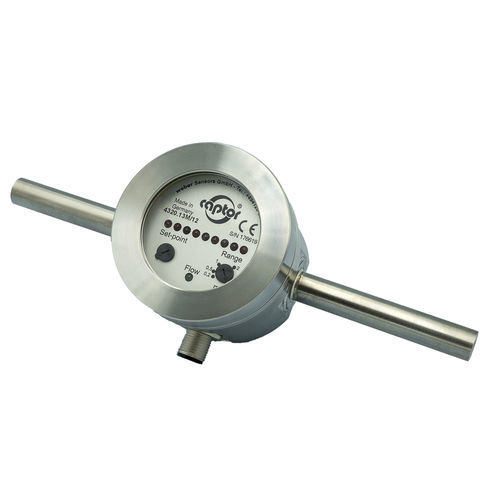

Calorimetric flow sensor 4320.1xM/xx

volumeruggedfor liquids

The flow-captor type 4320.1xM/xx is a flow monitor which is used in automation processes or other industrial applications where liquid media need to be monitored. The 4320.1x-series offers inline models which have been specially designed for installation in smaller pipe diameters. The sensor works according to the calorimetric measuring principle. The detection takes place inside the inline tube, whereby the sensor measures the flow velocity of the medium and converts it into an electrical signal. • for small pipe sizes from OD6 up to OD28 • fully electronic • separate adjustment of flow range and switching point • no mechanically moved parts • separate adjustment for "range" and "set-point" • analogue flow display and indication of the adjusted set-point via LED chain • LED for output status • ISO 9001 : 2015 Inline flow switch for water based media in stainless steel housing with transistor output Pipe sizes: from 6 - 28 mm OD Supply voltage: 18 - 30 VDC (also as 10.5 - 36 VDC available) Measuring range: 0-20 cm/s to 0-300 cm/s, continuously adjustable
