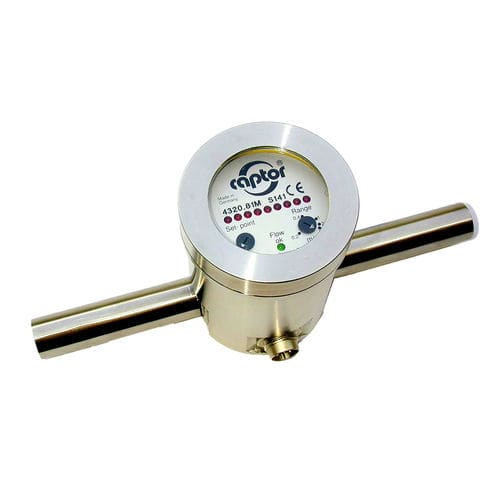

Calorimetric flow sensor 4320.8xM/xx

volumeruggedfor liquids

The Inline flow-captor type 432x.80/.81M is a family of compact, precise metering flow switches with analog display in a rugged stainless steel housing. They operate based on the calorimetric principle. The flow-captor allows to set an exact flow set-point and will measure simultaneously the flow rate up to the lowest flow conditions. • Precise switching flow monitor for water or oil-based solutions • High accuracy also under low flow conditions • Separate adjustment for "range"and "set-point" • Relay output with potential-free changeover contact • Analog display of actual flow rate and display of adjusted set-point value • LED display for output status • ISO 9001: 2015 Inline flow switch for water based in stainless steel housing (full encapsulation) with relay output (90 - 250 VAC) Operating principle: calorimetric Protection class: IP67 Pipe sizes: from 8 - 28 mm OD Supply voltage: 90 - 250 VAC Measuring range: 0 - 20 cm/s to 0 - 300 cm/s, continuously adjustable
