Calorimetric flow sensor 4320/xx + 4020.1x S200

volumeruggedfor liquids

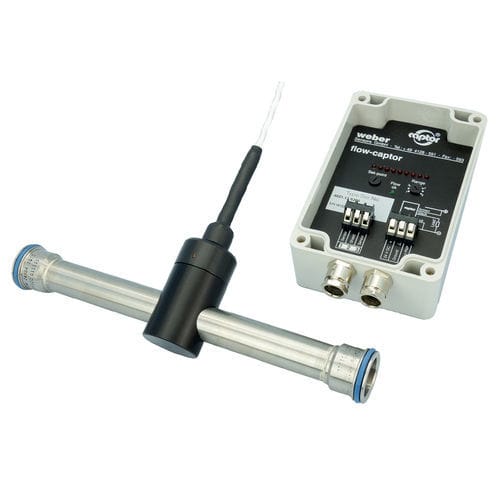

The flow-captor system 4320/xx + 4020.1x S200 consists of a sensor tube and separate electronics. Separate systems are used where special protection of the electronics is required. Separate systems are used in automation processes or other industrial applications where liquid media must be monitored. The flow-captor works according to the calorimetric measuring principle, fully electronically and without mechanically moving parts. The sensor detects the flow velocity of the medium and converts it into an electrical signal. precise switching flow monitor high switching accuracy even at lower flows separate adjustment of Set-point and Range analog display of the current flow and the adjusted set-point via LED chain LED for output status robust industrial design (special potting of sensor and electronics) ISO 9001:2015 Remote electronic & sensor for specialist applications. Pipe diameters: 6 - 28 mm OD Supply voltage: 18 - 30 VDC Measuring range: 0-20 cm/s to 0-300 cm/s, continuously adjustable Further versions: high temperature version for medium temperature up to 135 °C / 275 °F (S202)
