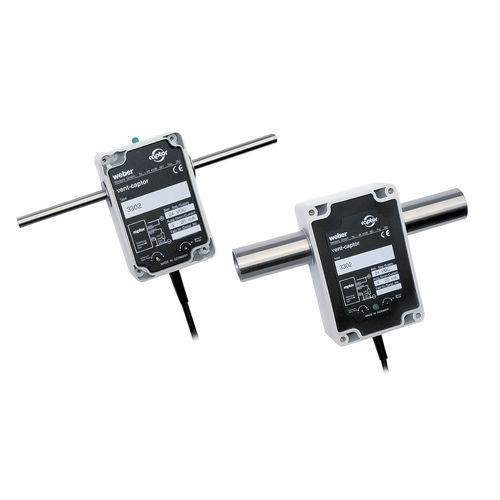

Calorimetric flow sensor vent-captor 3302.30/xx

volumeruggedfor cooling systems

The inline vent-captor type 3302.30 is a compact air meter for industrial applications, ideal for small diameters. The operating principle is based on the calorimetric principle. The inline vent-captor is completely resin encapsulated, thus rugged, shock and vibration proof. • Small pipe diameters • Ideally suited to small flow volume • Temperature compensated • Compact, no additional parts • Linear current output 4 - 20 mA • LED - output current range display • Rugged industrial version Inline flow-meter for monitoring air and other gaseous media Output: analogue, 4 - 20 mA Measuring range: 0 - 5 m/s, 0 - 10 m/s, 0 - 20 m/s and 0 - 30 m/s Pipe diameters: 12 - 28mm Pressure: 10 bar Operating voltage: 18 - 30 VDC
