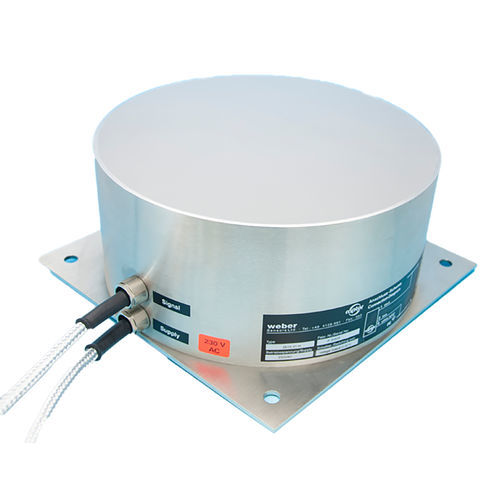

Cylindrical distance sensor proxi-captor 2610.3x

inductiveanalogIP65

The proxi-captor 2610.3x is an inductive distance meter which can be applied to all automated metal control processes where an analog signal is required. The proxi-captor is either available with voltage output or with current output. For AC types the output is potential free. The high frequency oscillator is periodically triggered to produce damped oscillation pulses. Both the amplitude and duration of the pulses are directly proportional and, within a wide range, linear to the degree of damping aused by the presense of a conductor within the inductive field. This RF-signal is integrated and fed to the output amplifier. Both zero point and range (sensitivity) are adjustable. As a contactless transducer the proxi-captor type 2610.3x is ideally suited for distance measurement and tasks such as strip or edge detection in coiling or loop control systems, in the steel industry. • compact unit • simple to install • maintenance-free • shock and vibration proof • fully resin encapsulated • no moving parts • temperature compensated • short circuit protected • ISO 9001 : 2015 Inductive distance meter for automated metal control processes, for which an analog signal is required compact device (stainless steel housing with mounting plate) for switching distances up to 140 mm for ambient temperatures from -20 °C to +70 °C easy to install wear- and maintenance-free shock and vibration resistant no mechanically moving parts temperature-compensated short-circuit and interference voltage resistant
