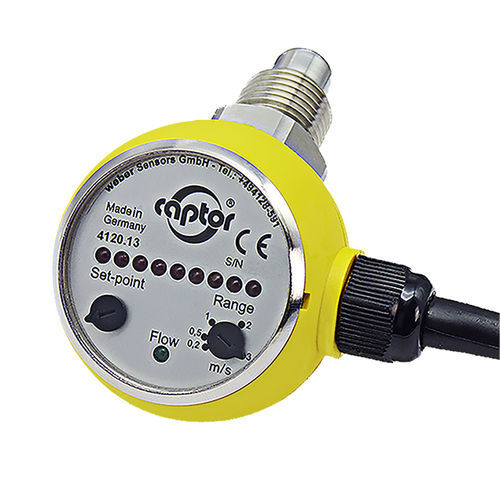

Liquid flow switch 4120.1x

electronicindustrial

The flow-captor 412x.1x is ideally suited for use in automation processes or other industrial applications where liquid media must be monitored. The sensor works according to the calorimetric measuring principle, fully electronic and without mechanically moving parts. The flow-captor detects the flow velocity of the medium and converts it into an electrical signal. • precise switching flow monitor • high switching accuracy even with slower flows • separate adjustment of set point and range • display of the flow and the switching point via LED chain • LED for output status • robust industrial design (special encapsulation) • ISO 9001:2015 Measuring range: 0 - 20 cm/s to 0 - 300 cm/s, continuously adjustable Protection class: IP65 Operating voltage: 18 - 30 VDC Options: different sensor head sizes and lengths, different materials, BSP and NPT, cooling version up to 130 °C (S101)
