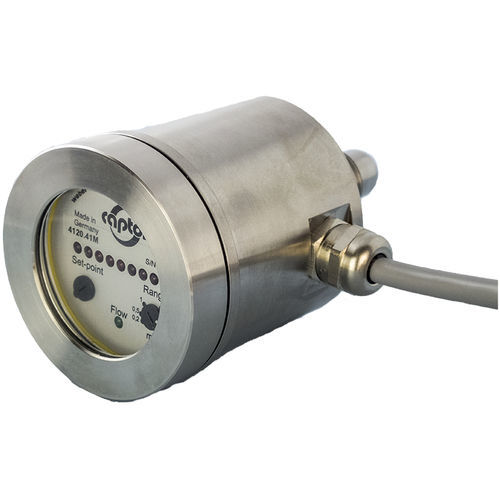

Water flow switch 4120.4xM

stainless steelIP67rugged

The flow-captor 412x.40/.41M is ideally suited for use in automation processes or other industrial applications where liquid media must be controlled. The sensor operates according to the calorimetric measuring principle, fully electronic and without any mechanically moving parts. The flow-captor detects the flow velocity of the medium and converts it into an electrical signal. • precise switching flow monitor with relay output • operating voltage 18 - 30 VDC • high switching accuracy even with slower flows • separate adjustment of set-point and range • display of flow and the adjusted switching point via LED chain • LED for output status • robust stainless steel design (special potting) • ISO 9001:2015 flow switch for water based media in a rugged stainless steel housing (full encapsulation) Operating voltage: 18 - 30 VDC Protection class: IP67 Measuring range: 0 - 20 cm/s up to 0 - 300 cm/s, continuously adjustable
