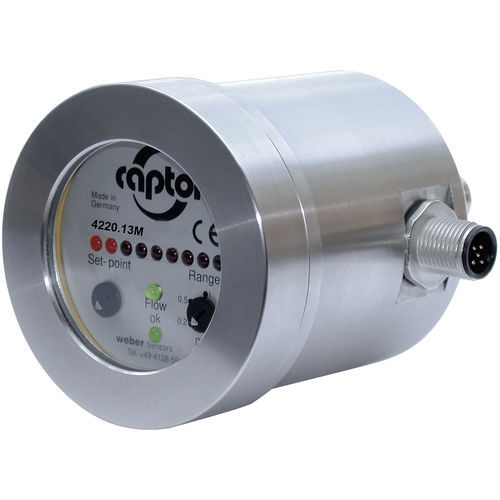

Water flow switch 4220.1xM

stainless steelIP67rugged

The flow-captor 412x.1xM is ideally suited for use in automation processes or other industrial applications where liquid media must be monitored. The sensor works according to the calorimetric measuring principle, fully electronic and without mechanically moving parts. The flow-captor detects the flow velocity of the medium and converts it into an electrical signal. The 422x.1xM has a combined flow temperature output. • precise switching sensor with additional analogue temperature output • high switching accuracy even under low flow condition • separate adjustment for range and set-point • analogue display of the flow and the switching point via LED chain • LED-display of output status • ISO 9001 : 2015 flow switch for water based media in a rugged stainless steel version / full encapsulation / analog temperature output Operating principle: calorimetric Electrical output: transistor output Temperature output: analog 4 - 20 mA Operating voltage: 18 - 30 VDC Measuring range: 0-20 cm/s up to 0-300 cm/s, continuously adjustable
