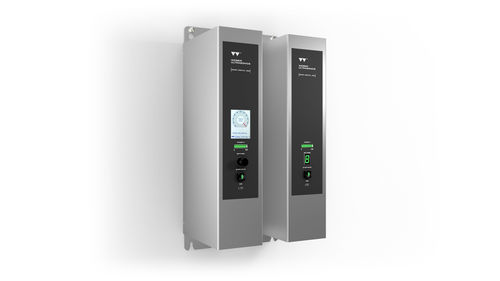

Cleaning ultrasonic generator SONIC DIGITAL HS3

DIN rail

The Sonic Digital HS3 delivers up to 2,000 W. Flexible and space-saving mounting options, high degree of efficiency, optional fieldbus interfaces and high compatibility with other components makes the Sonic Digital HS3 the perfect solution for industrial installations. OPTIMUM RESULTS The wide range of frequencies and power outputs offers the right solution for every cleaning task. INDIVIDUAL INSTALLATION Suitable for any installation situation, fitting is possible flat or rotated 90° TECHNICAL DATA - Sweep (for submersible and plate transducers, as of 58 kHz) - Digital frequency generation and control - Power output control from 10 – 100 % in 1-% increments for submersible and plate transducers (50 – 100 % for rod trans- ducers) - Frequency monitoring - Fan control - Temperature management - Dry run protection in connection with SonoPush rod transducers - 15-pole I/O interface - RS485 interface - Mains connection: open cable ends or country-specific plugs / Phoenix on the device - Weight: 3.7 kg - Dimensions HxWxD: 385x169x89 mm SONIC DIGITAL HS3 GENERATORS FLEXIBLE, SMART, POWERFUL SONIC SMART CONFIGURATOR Simple to operate and set up with the Sonic Smart Configurator operating software for Windows operating systems (as of version 10) as complete replacement for the Sonic Digital hand-held control unit with additional functions: - Read out and edit generator configuration - Simultaneously alter and monitor parameters - Log measured values - Save/read configuration - Remote access/maintenance possible
