Sanding deburring machine PT

deburringfinishinggrinding

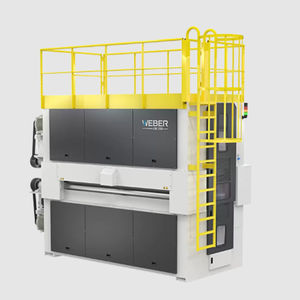

The PT compact model for thin and heavy plate offers sophisticated WEBER sanding technology as a standardized package at an attractive price. The PT compact guarantees perfect sanding results and meets the highest requirements for the trade. We use rubberized sanding rollers for surface finishing and for sanding off burrs. The sanding pressure is created by moving the roller downwards in relation to the set workpiece thickness. When the workpiece is approached, the rubber coating of the roller is pressed upwards and the restoring force of the rubber coating provides the necessary sanding force. Sanding rollers are available in various diameters and rubber hardnesses and can be adapted to all parts to be sanded. Several rotating heads are also arranged next to each other when using round brushes. With two brushes per head, the intermeshing of the brushes ensures uniform processing results across the entire working width. Thanks to its compact design, the brush head can be easily combined with other WEBER sanding technologies. The arrangement works perfectly with all material thicknesses from one millimeter. WEBER uses the P2 and P6 planetary head technology for all-round edge processing with cup brushes. Here, several rotating brushes, arranged in groups, are additionally set in rotation. The brushes thus work on the workpiece at the optimum angle. With the patented WEBER solution, the tools of the adjacent heads overlap in such a way that no gaps occur during processing. Thanks to the compact P2 design, the space requirement is significantly lower and thus enables easy combination with other processing stations.
