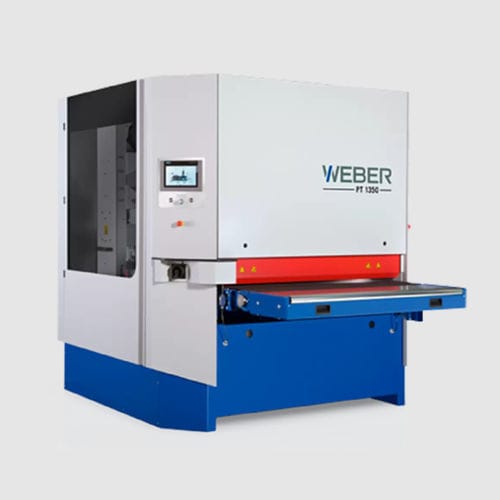

Compact deburring machine PT

sandingedge roundingdeburring

The concept of the PT series is primarily designed for industrial use. WEBER therefore also offers the sanding machine as a top/bottom version. The selection and arrangement of the processing stations from above and below are freely selectable; the P2 planetary head unit, for example, can also be switched on adaptively. can also be switched on adaptively. Contact roller system "D" For surface finishing and deburring, we use rubber-coated grinding rollers. The grinding pressure is generated by lowering the roller compared to the set workpiece thickness. Their use ensures uniform removal of burrs, resulting in a smooth surface. The contact roller is particularly effective for rough grinding, as it effortlessly removes thick, melted laser splatter. The contact roller is precisely controlled and usually positioned slightly below the zero line, allowing for flexible adjustment of the grinding pressure and meeting the requirements of various workpieces. To ensure quick and precise positioning, the unit is equipped with electric adjustment and can be accurately positioned and readjusted during operation. The contact roller unit is equally prepared for the use of Scotch-Brite belts. Grinding rollers are available in various diameters and rubber hardnesses and can be adapted to all parts to be ground. Multi-Rotation-brush"R2" For a uniform and all-round edge rounding on all inner and outer edges, multiple rotating heads are arranged side by side. The interlocking of the brushes, with two brushes per head, ensures consistent processing results across the entire working width.
