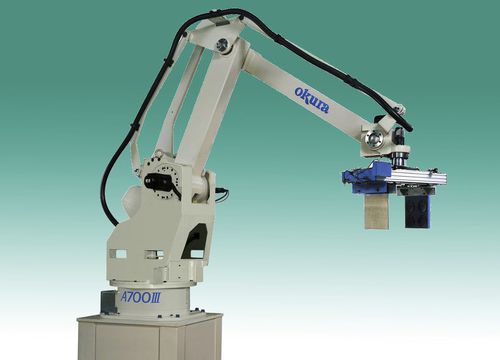

Palletising system okura Ai700 Rapid

Innovation, Research and State of the Art Design result in a New, Highly Efficient and Reliable Robotic Palletiser. Ideal for Handling • Cartons • Cases • Bags • Sacks • Crates • Pails • Drums • Unstable loads Control Panel Specifications Built in OXPA allowing for programs to be created and modified directly on the controller. Model: RC1600-CE Dimensions: 960 mm W x 640mm D x 1150mm H Weight: 250kg (551lbs) Power: Robot 2.5kVA, Ac380/400/415 ±10% 50/60Hz Triple-phase Colour: RAL 7035 Display: 8.4” TFT Touch Screen Servo Control: Up to control 6 axis (control 2 optional axis) Ambient Temperature: 0-40˚C Relative Humidity: 35-85% Palletising Software The user-friendly palletising software presents 3D drawings including clear icons on buttons and selectors ensuring smooth operation. Backup and restore stacking programs, download and upload system files. High speed PLC processing speed. Benefits • Systems integration, after sales support and training by leading European distributor – Webster Griffin. • More industrial and easy to connect Harting connectors are used with the Ai-series • Grease Leak Chamber for D-axis and )-axis preventing grease penetration into servo motor. • Load Variation Detection Function (LVD) reducing the risk of damage to handled items and/or robot.
