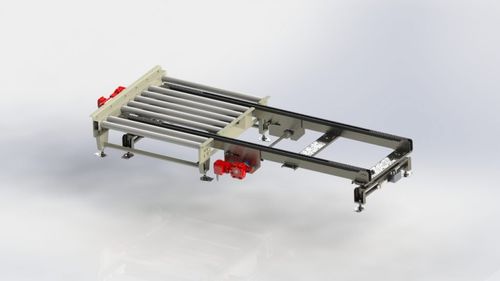

Roller conveyor

pallethandlingautomatic

Webster Griffin offers a vast range of pallet handling and conveying elements for single purchase or integration into a fully integrated turn-key system. Pallet magazines - automatic machines for dispensing wooden or plastic pallets on to a conveyor or into a palletiser. Our range includes a heavy duty fork type model with a lifting capacity up to 600kg. Machines are suitable for a wide range of pallets sizes and can be adjusted with ease. A full range of belt, roller and plastic belt conveyors including high speed carton elevators, high speed conveyors, turntable conveyors and carton lowerators, complete with integrated control systems. • 1.0 - 2.0 Ton pallet capacity • Modular design for integration with into pallet conveyor system • Reliable up/down pneumatic chain or roller bed lift mechanism • Powered chain conveyor with two or three strands • Chain type 1" simple, duplex or triplex • Roller conveyor Webster Griffin modular units • Adjustable legs +/- 50mm with galvanised machine cup feet • VFD drives optional • Control panel by Webster Griffin optional • Built for continuous operation
