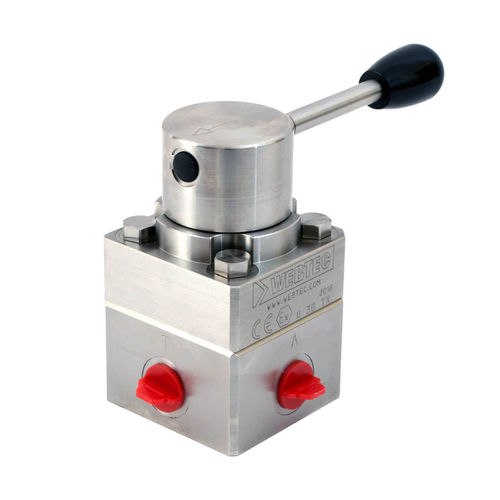

Spool hydraulic directional control valve 280

seatrotarymanual

The 280 Series is a high pressure, 316 stainless steel, hydraulic rotary direction control valve. It is the ideal solution for control of hydraulic actuators used in arduous environments where internal leakage must be minimised. The valves utilise an optically flat rotary spool with pressure loaded seats, to ensure either zero or near zero leakage (depending on flow size). The 280 Series valve is compatible with water glycol hydraulic fluid. Ambient Temperature: -20 to 50°C, -4 to 122°F Media Temperature: -30 to 120°C, -22 to 248°F Porting: BSPP, NPTF, SAE, Manifold Mount Material: Body Materials: Stainless Steel, Phenolic resin knob. Internal Materials: Carbon Steel Seal: NBR Weight: Typically 3.2 kg, 7 lb Mounting: Standard: 4 x 5/16” UNC holes to fasten screws into valve base Panel: 4 x 5/16” UNC studs to fasten valve into panel Manifold: 4 x 5/16” UNC through bolts to fasten valve onto manifold 4 x M5 through bolts supplied for CETOP3 4 x #10 UNC through bolts supplied for D03
