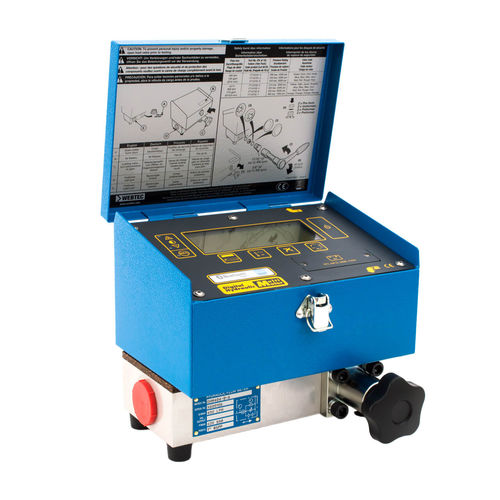

Power tester DHM404 series

temperaturesafetypressure

The DHM 4 Series Digital Hydraulic Multimeter accurately Measure flow, pressure, peak pressure, temperature, power and volumetric efficiency. The tester comprises a turbine flow block and a large easy to read digital display which indicates flow, temperature and pressure. The tester has a built-in loading valve to simulate the working pressure during normal machine operation. The built-in safety discs protect the machine and operator in event of excessive pressure, allowing oil to safely bypass the loading valve INTERNALLY with no spillage of oil from the hydraulic circuit, eliminating clean-up costs and environmental hazards. The DHM 4 Series records and wirelessly transfers data. Compatible Fluid: Mineral oils to ISO 11158. Other fluids consult sales office Porting: BSPP, SAE Material: Case: Powder coat painted Mild Steel, Flow Block: High tensile aluminium,
