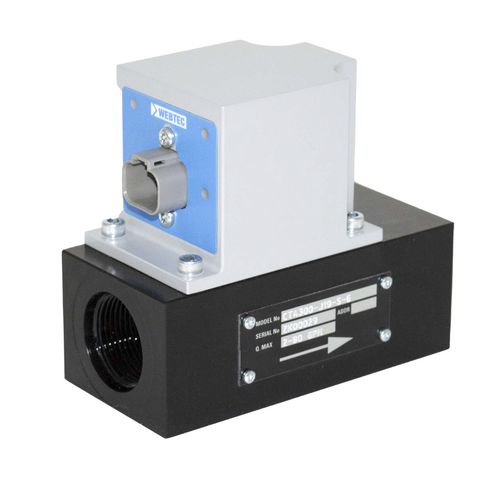

Volume flow monitor CTA seriesIoTruggedIP69K
Add to favorites
Compare this product
Characteristics
- Type
- volume
- Communication
- IoT
- Protection level
- rugged, IP69K
- Volumetric flow rate
Max.: 300 l/min
(79.2516 us gal/min)Min.: 3 l/min
(0.7925 us gal/min)- Process temperature
Max.: 90 °C
(194 °F)Min.: -20 °C
(-4 °F)- Process pressure
420 bar
(6,091.58 psi)- Precision
2 %
- Repeatibility
0.2 %
Description
Rugged, resilient hydraulic oil flow and temperature monitors designed for permanent installation in mobile machinery.
Ideal for on and off-highway machinery to monitor hydraulic system performance. Suitable for closed loop control, real-time diagnostics, safety interlocks and inclusion in predictive maintenance / IoT systems to reduce down-time or enable autonomous vehicle operation.
Designed to meet the standards for components fitted to heavy duty vehicle applications, the meters have a J1939 CAN-bus interface for easy integration.
Output: J1939 reporting flow and temperature
Deutsch automotive connector
Ingress protection: IP69K
Tested to SAE J1455, ISO 11451, CISPR 25 and SAE J1113-13
