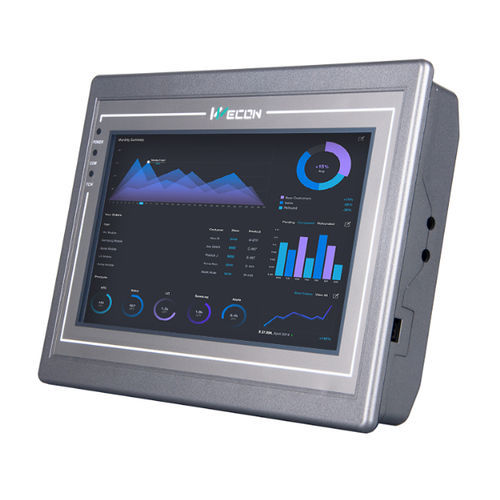

HMI with touch screen PI3102i-Apanel-mount1024 x 600LED backlight
Add to favorites
Compare this product
Characteristics
- Interface
- with touch screen
- Mounting
- panel-mount
- Resolution
- 1024 x 600
- Screen type
- LED backlight
- Protection level
- IP65
- Connectivity
- USB, Ethernet, RS-232, RS422/RS485, CANopen
- Screen size
10.2 in
Description
OS - Linux 4.9.11 QT based
Processor - Cortex A7 528MHz
Screen - TFT
Color - 16,000k colors
Brightness (cd/m2) - 350
Backlight Lifetime - 50,000 hours
Touch Panel - High precision four-wire resistive
Memory - 128 MB
Flash - 128 MB
SD Card Slot - YES
Real-time clock - Yes
Calendar - Yes
Ethernet - x1
CANopen - x1
Rated Power - < 10W
Power Voltage - DC 24V
Input range - DC 12 ~ 28V
Shell Color - Grey
Shell Material - PC+ABS
Overall Size (mm) - 272.0W*190.0H*41.5D
Mounting Size (mm) - 260.0W*179.0H
Weight (Kg) - 1.31
Working Temperature - -10 ~ 60°C
Storage Temperature - -20 ~ 70°C
Humidity - 10 ~ 85％RH (Non-condensing)
Vibration Resistance - 10 ~ 25 Hz (X, Y, Z direction 2G/30 minutes)
Cooling - Air Cooling
Programming - PIStudio
Data Tool - Yes
CE - CE Marked
FCC - FCC Class A
