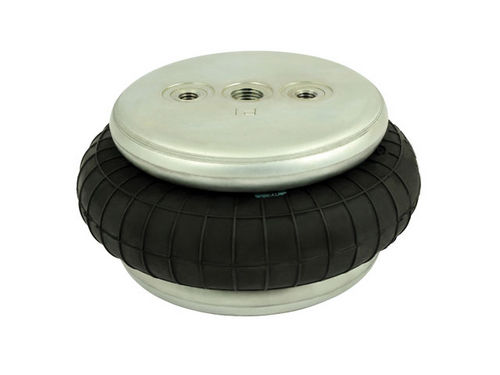

Compression spring -40 ºC ... +70 ºC, 1 - 8 bar | WBE seriesairelastomer
Add to favorites
Compare this product
Characteristics
- Function
- compression
- Type
- air
- Material
- elastomer
- Force
Min.: 120 N
Max.: 300 N
Description
Operating pressure: 1 - 8 bar
Temperature: -40ºC - max. +70ºC
Compressed air: oiled / oilfree
Lateral misaligment: max. 20 mm
Tilt capability: max. 20º
Return force: 120 - 300 N
