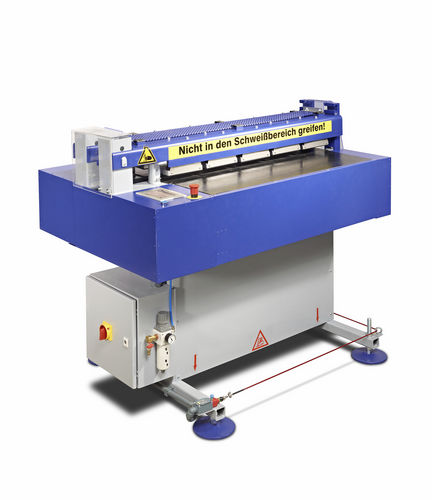

Butt welding machine SC

automaticfor plastics

Compact Butt Welding Machine Model SC The WEGENER SC Compact Welding Machines are based on a sturdy welded construction. Like all of the machines from WEGENER International, the components are matched to the relevant load case to ensure top-quality, heated tool butt welding. The goal behind the development of the SC range of machines, which are available in the working widths 1 m, 1.5 m and 2 m, was to transfer the innovative and quality-oriented performance of the larger ST and SM series of butt welding machines to the more compact dimensions of the SC series. The machine concept, in combination with the almost maintenance-free mechanical synchronisation of the working tables (parallel movement mechanism) developed and patented by WEGENER, creates the ideal requirements for quality-assured welding in accordance with DVS 2208. This parallel movement mechanism allows a constant welding pressure along the entire working length and differences in the welding pressure caused by an eccentric insertion of the panels or board to be processed are avoided by this patented system. This is an absolute novelty in the field of compact welding machines. The SC series allows an automatic, quality-assured welding of thermoplastic sheets or panels in the smallest of spaces. Touch screen operation with an automatic calculation of the welding force needed for the materials saved in the database or a 90° welding device can be integrated in the machine as options. This allows it to be ideally adapted to the customers' needs.
