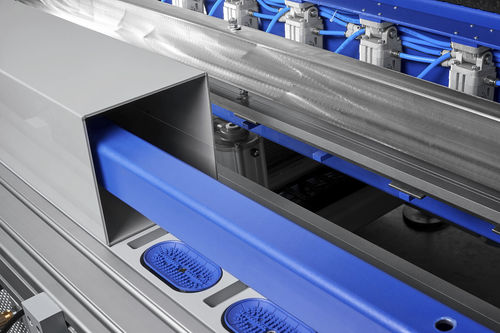

Electric bending machine BM 306A

tubeedging

The BM 306A bending and edging machine works fully-automatically with panels between 3 and 30 mm thickness. The bending line correction as well as the linear correction needed for the fully automated production of channels are set at the control terminal, as are the bending angle and relevant gap between the bending lines. The material is transported by an electric motor so Bending and Edging Machine Model BM that the machine, if programmed accordingly, automatically produces a channel with up to 12 bends after the material has been inserted. Even the basic model of the BM 306A bending and edging machine has a modern and innovative Siemens control system from the S7 1500 series with a 10" industrial touch screen as a user interface and the latest generation of valve cluster technology. The 10" industrial touch screen offers great luminance, outstanding colours and a high brilliancy, thus making it unbelievably easy to read and operate. The control system allows the free definition of specific customer bending parameters. The basic model also comes with the patented hydro-pneumatic bending beam drive that moves the bending beam uniformly, even with altered bending loads. Another new feature is the clamping beam that can be unlocked on one side to greatly facilitate the removal of the closed channels from the machine. An optional automated and integral milling fixture is available for the BM 306A automatic bending maschine. The milling process is fully integrated in the overall process in this version. The milling process reduces both the bending cycle time and the heat introduced into the panel to be bent, thus minimising the distortion or torsion of the bent parts.
