Buse fueling nozzle TK24 CNG
for trucks

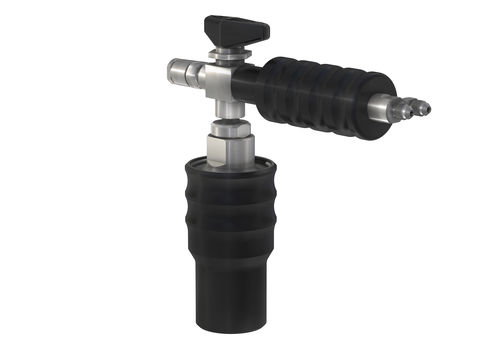

Buse fueling nozzle - TK24 CNG - WEH GmbH Verbindungstechnik - for trucks
Buse fueling nozzle - TK24 CNG - WEH GmbH Verbindungstechnik - for trucks
Buse fueling nozzle - TK24 CNG - WEH GmbH Verbindungstechnik - for trucks - image - 2
Buse fueling nozzle - TK24 CNG - WEH GmbH Verbindungstechnik - for trucks - image - 3
Buse fueling nozzle - TK24 CNG - WEH GmbH Verbindungstechnik - for trucks - image - 4
Buse fueling nozzle - TK24 CNG - WEH GmbH Verbindungstechnik - for trucks - image - 5
Add to favorites
Compare this product


Characteristics

Other caracteristics
for buses, for trucks

Description

- Compatible with receptacles acc. to NGV1 standard and ISO 14469 - Push-Pull actuation - Integrated shut-off valve - Plastic thermal protection - Version with or without gas recirculation - Grip position at 90° - Ergonomic design - WEH® Jaw Locking Mechanism - Colour coded impact protection (200 bar / 3,000 psi black, 250 bar / 3,600 psi yellow) - High-grade materials The WEH® TK24 CNG Fuelling Nozzle combines user comfort with maximum convenience. The integrated WEH® TK22 CNG Fuelling Nozzle features ‘push-to-connect’ jaw locking system which automatically moves the grip sleeve back when making a connection. The ergonomic design of the handle enables an easy connection to the receptacle. This feature can help to prevent stresses on the high pressure hose and hose damage due to chafing on the ground. Refuelling starts after opening the integrated ball valve. Closing the ball valve finishes refuelling and the integrated gas recirculation automatiaclly depressurizes the system. The nozzle can then be disconnected by pulling back the grip sleeve of the TK22 CNG. The WEH® TK24 CNG is also available without gas recirculation. The extended construction of the integrated WEH® TK22 CNG fuelling nozzle helps in refuelling difficult-to-access receptacles. WEH® jaws grip symmetrically, avoiding damage to the receptacle profile which could result in leakage.
