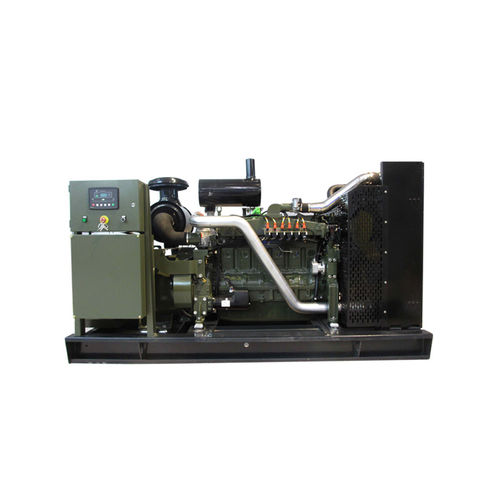

Diesel generator set WP12 series

biogasthree-phasestationary

Widely used in coal mines, oil fields, wineries, sewage treatment plants, agricultural biogas power generation. 1, has a good technical performance indicators; 2, the economy is good, cost-effective; 3, safety and environmental protection, pollution; 4, advanced ECU speed control mode; 1, Rated power: 200kW; 2, rated voltage: 400V; 3, the rated speed / rated frequency: 1500rpm/50Hz; 4, Rated power factor: 0.8 (lagging); 5, rated current: 360.8A 6, number of cylinders / Bore / Stroke: 6/126mm/155mm; 7 Displacement: 11.596L; 8 Cooling: Closed radiator fan forced cooling; 9, the start-up mode: DC24V electric motor; 10, number of phases and connection: three-phase four-wire, star connection; 11, excitation / regulator: Brushless / AVR automatically; 12, diesel economic gas consumption rate: ≤ 216g/kW · h; 13 Oil consumption: ≤ 1.1g/kW · h;
