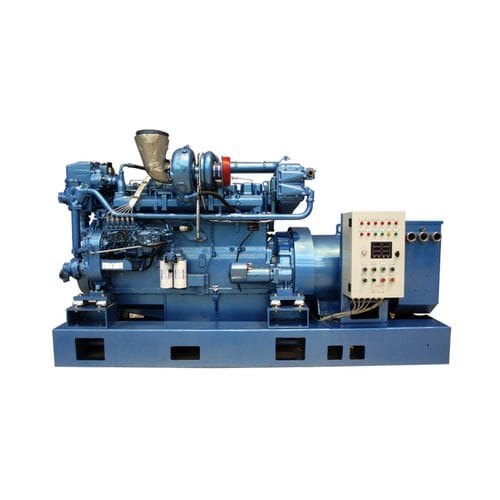

Diesel generator set 6M26 series

three-phasestationary50 Hz

Widely used in inland and coastal waters, offshore market carriers, fishing boats, official boats, ships and other projects. 1, has a good technical performance indicators; 2, compact, high power per liter; 3, DC24V DC insulation systems; 4, non-stop to replace the fuel filter and oil filter; 5, bronze gear-type sea water pump; 6, fully meet the requirements of the "steel marine vessel construction norms", "steel ship classification rules", GB13032 "marine diesel generator sets, etc.; 1, Rated power: 400kW; 2, rated voltage: 400V; 3, the rated speed / rated frequency: 1500rpm/50Hz; 4, Rated power factor: 0.8 (lagging); 5, rated current: 721.7A 6, number of cylinders / Bore / Stroke: 6/150mm/150mm; 7 Displacement: 15.9L; 8 Cooling: Dual circulation water cooling; 9, the start-up mode: DC12V electric motor; 10, number of phases and connection: three-phase four-wire, star connection; 11, excitation / regulator: Brushless / AVR automatically; 12, diesel fuel consumption economy: ≤ 198g/kW · h; 13 Oil consumption: ≤ 1.0g/kW · h;
