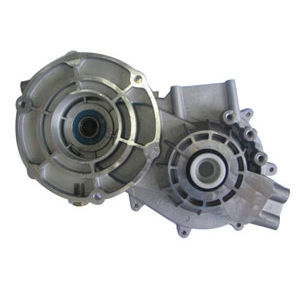

Parallel-shaft gear reducer 1T15 hollow-shaft100 - 200 Nmvehicle
Add to favorites
Compare this product
Characteristics
- Shaft orientation
- parallel-shaft
- Shaft configuration
- hollow-shaft
- Torque
- 100 - 200 Nm
- Applications
- vehicle, transmission
- Rotational speed
9,000 rpm
(56,548.67 rad.min-1)
Description
1T15 Sériés New Energy Reducer
The basic structure: two parallel shaft structure
Rated input torque: 150Nm
Maximum speed: 9000r/min
Center distance: 79mm+110mm
Gear ratio range: 6.96-7.881
oil quantity and type: 1.4L/GL-4
Weight (kg): 15
Product Dimensions: 410x160x314
matching motor: mini electric car models
design objectives: 300,000 km
