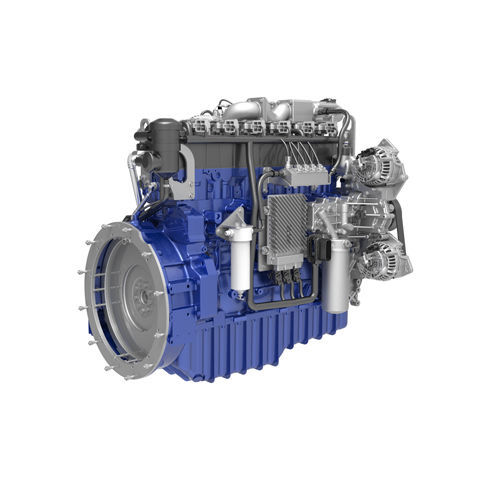

Natural gas engine WP7NG series6-cylinderturbo-intercoolerin-line
Add to favorites
Compare this product
Characteristics
- Type
- natural gas
- Number of cylinders
- 6-cylinder
- Technology
- turbo-intercooler, in-line
- Product applications
- fuel
- Cooling system
- air cooling
- Emissions level
- Euro 6, Euro 5
- Other characteristics
- 4-stroke, compact
- Power
Max.: 213 kW
(289.599 hp)Min.: 177 kW
(240.653 hp)- Torque
1,150 Nm
(848.1965 ft.lb)- Rotational speed
Max.: 1,500 rpm
(9,424.78 rad.min-1)Min.: 1,100 rpm
(6,911.5 rad.min-1)- Displacement
7.47 l
(1.973 gal)- Weight
680 kg
(1,499.14 lb)- Length
1,200 mm
(47.2 in)- Width
950 mm
(37.4 in)- Height
985 mm
(38.8 in)
Description
Compact structure, high reliability, high power performance and excellent economy.
power coverage 177-213 kW , combining new technological achievements to meet Euro V/VI emissions, power, economy, Reliability is better than competing products. Applied in a 4 × 2 port tractor.
Powerful
•Power 156kW-199kW; maximum torque of 1150N·m for powerful overall vehicle
•Maximum torque speed 1100-1500r/min; 1000 rpm torque to 1060N·m for fast start-up acceleration
Low fuel consumption
•Equivalent combustion, economical speed range from 1100r/min-1700r/min, and a wider area of low air consumption
Reliability
•Parts and components are upgraded to high temperature resistant materials, water cavity optimization and cooling design of the cylinder head
•The B10 can last up to 800 thousand kilometers
Excellent NVH performance
•Whole unit NVH optimization, low noise, low vibration, 2dB(A) lower than competing in its class
