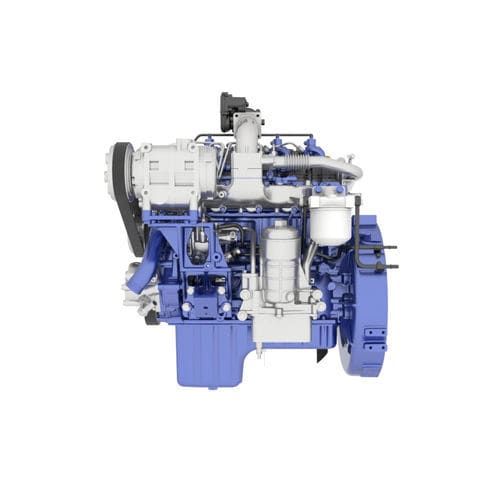

Diesel engine WP2.5N series
4-cylinderturbo-intercoolerin-line

Diesel engine - WP2.5N series  - Weichai Power Co., Ltd. - 4-cylinder / turbo-intercooler / in-line
Diesel engine - WP2.5N series  - Weichai Power Co., Ltd. - 4-cylinder / turbo-intercooler / in-line
Diesel engine - WP2.5N series  - Weichai Power Co., Ltd. - 4-cylinder / turbo-intercooler / in-line - image - 2
Diesel engine - WP2.5N series  - Weichai Power Co., Ltd. - 4-cylinder / turbo-intercooler / in-line - image - 3
Diesel engine - WP2.5N series  - Weichai Power Co., Ltd. - 4-cylinder / turbo-intercooler / in-line - image - 4
Add to favorites
Compare this product


Characteristics

Type
diesel
Number of cylinders
4-cylinder
Technology
turbo-intercooler, in-line
Product applications
vehicle
Cooling system
air cooling
Emissions level
Euro 6
Other characteristics
4-stroke
Power

125 kW
(169.953 hp)

Torque

500 Nm
(368.7811 ft.lb)

Rotational speed

Min.: 1,400 rpm
(8,796.46 rad.min-1)

Max.: 2,800 rpm
(17,592.92 rad.min-1)

Displacement

2.5 l
(0.66 gal)

Weight

230 kg
(507.06 lb)

Length

728 mm
(28.7 in)

Width

630 mm
(24.8 in)

Height

762 mm
(30 in)

Description

High Power, High Torque (Low Speed Torque), NVH Custom Development, Low noise, Low Vibration, Low energy consumption and high reliability; power range 125kW Euro VI emissions and applied in 6-7.7m road bus, city bus. Emission ■Euro VI emissions Economy ■Improve engine combustion efficiency with the latest combustion technology and high efficiency boosters ■The whole vehicle consumes less than 8.8L/100km for 100 kilometers Power performance ■Increase torque in the low and medium speed range, and accelerate the drive away quickly ■Maximum torque 500N·m for more complete overtaking capacity Reliability ■B10 life up to 800000km ■Piston, bearing and other major parts upgrade materials, and use Weichai system quality supplier ■The rigorous and complete test and verification of the bench frame, three-height, and whole-vehicle drum ensures engine reliability Comfort ■High-precision gears and closed flywheel housings are noise-canceling designs to reduce engine body noise ■Electronically controlled multiple injections are used to reduce engine combustion noise ■The largest engine semi-acoustic chamber and other test resources in the country ensure outstanding engine NVH performance Adaptability ■The engine can be equipped with a wide range of accessories, such as generators, power steering pumps, air conditioning compressors, compressors or vacuum pumps, to meet client individual needs
