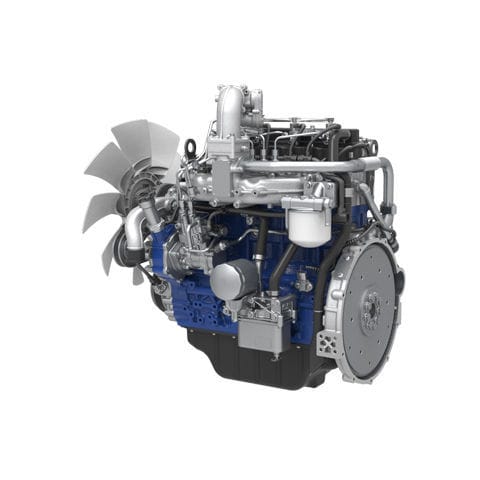

Diesel engine WP3.6N series
4-cylindercommon-railin-line

Diesel engine - WP3.6N series  - Weichai Power Co., Ltd. - 4-cylinder / common-rail / in-line
Diesel engine - WP3.6N series  - Weichai Power Co., Ltd. - 4-cylinder / common-rail / in-line
Diesel engine - WP3.6N series  - Weichai Power Co., Ltd. - 4-cylinder / common-rail / in-line - image - 2
Diesel engine - WP3.6N series  - Weichai Power Co., Ltd. - 4-cylinder / common-rail / in-line - image - 3
Diesel engine - WP3.6N series  - Weichai Power Co., Ltd. - 4-cylinder / common-rail / in-line - image - 4
Add to favorites
Compare this product


Characteristics

Type
diesel
Number of cylinders
4-cylinder
Technology
common-rail, electronically carbureted, in-line
Product applications
for trucks, for agricultural applications
Emissions level
Stage III
Other characteristics
4-stroke
Power

Max.: 89 kW
(121.006 hp)

Min.: 63 kW
(85.656 hp)

Torque

380 Nm
(280.2736 ft.lb)

Rotational speed

1,600 rpm
(10,053.1 rad.min-1)

Displacement

3.58 l
(0.946 gal)

Weight

400 kg
(881.85 lb)

Length

918 mm
(36.1 in)

Width

575 mm
(22.6 in)

Height

931 mm
(36.7 in)

Description

Compact structure, high reliability, high power performance and excellent economy. High power, great torque (great torque at low engine speed), customizable NVH performance design, low noise level, low vibration intensity, low energy consumption, and high reliability. Power range: 63-89kW. EU Stage3A emission standards. Application: 85-120Ps tractors. Powerful ■Four-valve design, optimized combustion, highly responsive power, high low-speed torque, and high load resistance. Economy ■Separate air intake and exhaust design, improving inflation efficiency, optimizing combustion, and improving economy. Environmental adaptability ■It is fully sealed to suit the working conditions of waterfields and dry fields, and is equipped with self-research and development 93 sand and dust filters as standard, to suit the harsh working environment. Comfort ■The engine vibration noise is low, 8% better than the competition, thanks to pre-combustion technology and high precision engagement of the drive train.
