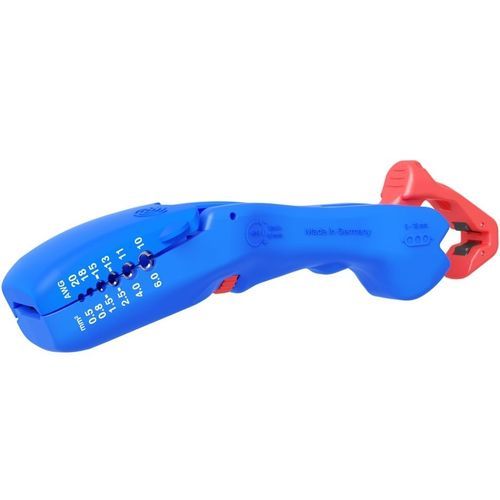

Cutting wire stripper 10068090

for flat cablesfor round cablesprecision

for all common flat cables up to a width of 18 mm I for all common round cables with a diameter of 6 to 13 mm I enables circular and longitudinal cuts on both flat and round cables I stripping function integrated in the housing (from 0.5 to 6 mm²) I precise work even in very narrow spaces, such as in junction boxes or cable ducts I cutting depth 0-3 mm I blade depth comfortably adjustable from 0-3 mm thanks to lockable adjusting screw (in steps of 0.1 mm) I ergonomically shaped handle The flat and round cable stripper can be used to strip all common flat and round cables quickly, precisely and safely.The tool was designed for flat cables up to a width of 18 mm and for round cables up to a diameter of 13 mm. Thanks to the guide at the head of the tool, longitudinal cuts are very easy to perform – especially for longer sections. The longitudinal cuts can be made on both flat and round cables. Below the cable guide is a rotatable inner blade. As with all WEICON TOOLS cable strippers, the blades can be used to make both circular and longitudinal cuts on round cables (from 6 to 13 mm) in a single step. With a lockable adjusting screw, the depth of the blade can be comfortably and precisely set in steps of 0.1 mm up to 3 mm. This prevents damage to deeper layers. Two more blades have been added to the base of this handy tool. These are used for parallel cutting of the outer sheath or insulation. This means that the outer sheath can be easily removed even in very narrow spaces, such as in junction boxes or cable ducts. The special design allows the stripping of longer sections at both the head and base of the tool.
