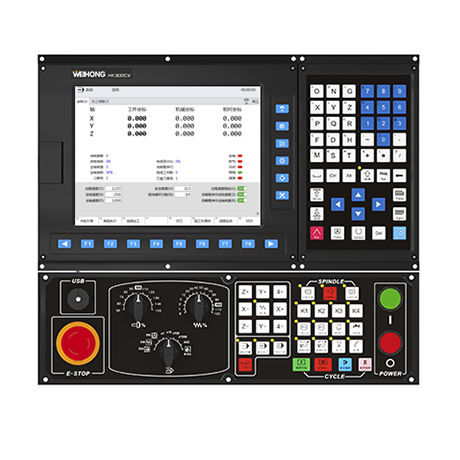

Cutting machine CNC controller NK300BX series

for milling machinesfor grinding machinesfor wood-processing machines

Number of Axes Supported 3-5 axes Hardware Specifications CPU Dual cores CPU Clock Speed 2.17GHz RAM 2GB Storage 60GB Monitor Dimension 10.4 I/O 800×600（SVGA）I/O Standard: 28/8; Extended terminal board: 8/8(non-cascade connection),10/10 (cascade connection) Performance Indicator The product stands EMI/Electrical fast transient immunity/Surge immunity tests and conforms to the fourth grade protection standards of GB/T 17626.5-2008. Resistance to vibration conforms to the GB/T 2423.10-2008 Standards. The product stands rigid temperature tests and conforms to the industrial standards of GB/T 2423.102-2008. Spindle Analog Voltage Output 0-10V Tool Management Tool Magazine Linear tool magazine,Disk-type tool magazine Tool Measurement Mode Auto measurement,Manual measurement Tool Measurement Type Fixed calibration, Mobile calibration, First calibration & Calibration after tool change Interpolation Programming Circular Interpolation Three axes linkage Three axes linkage Compensation Screw error compensation, Backlash compensation, AQE compensation, Tool compensation Toolpath Program Supported File Format *.g；*.nc；*.ug;*.demo;*.iso;*.eng;*.cut;*.dxf;*.plt;*.txt Communication Internet(Ethernet) LAN communication, Front USB interface, Two-way transmission between the system and PC Operations WCS Setting Supporting WCS G54-G59 and 120 extended WCSs Processing Technology Array function, Mirror&rotate, Multi-layer machining, Cycle machining Software Language Chinese,English High-speed High-precision Optimization Interpolation Algorithms S-type,LEP and Acceleration T-type algorithms
