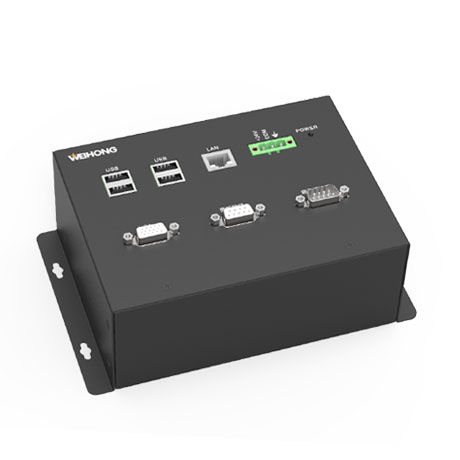

Box PC NC60A

VGAindustrialfor CNC machines

USB 4*USB 2.0 LAN 1*Giga LAN VGA Max1920*1280 Communication with Lambda by PHOENIX BUS terminal Analog voltage output 0-10V Tool Magazine Linear type, Disk type, Servo type Tool Measurement Auto and Manual measurement Tool Calibration Fixed tool calibration, Mobile tool calibration, First calibration & Calibration after tool change Compensation Type Workpiece compensation, Screw error compensation, Backlash compensation, AQE compensation, Tool compensation Supported File Format *.G；*.NC；*.UG;*.DEMO;*.ISO;*.ENG;*.CUT;*.DXF;*.PLT;*.TXT WCS SettingSupporting G54~G59 and WCS origin saving Processing Technology Multi-tasking, Array function, Mirror & Rotate, Multi-layer machining, Cycle machining Convenient Operations Handwheel guide, Breakpoint resume, Tool selection Interpolation Algorithms S-type, LEP, Acceleration T type algorithms Software Language Chinese, English CNC Software Alarm Alarms of program error, operation error, over-travel error, PLC error and IO communication error
