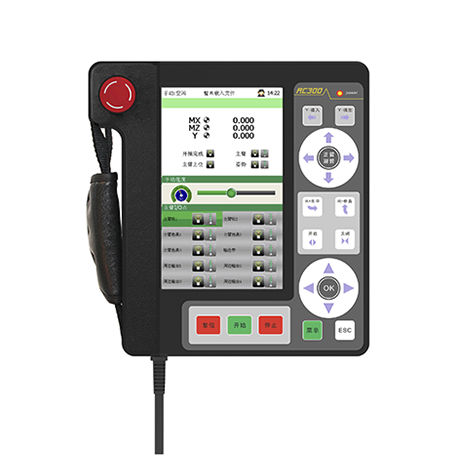

Robot CNC controller RC300

3-axis4-axis5-axis

CNC Specification Number of Axes Supported 3~5 axes Hardware Specifications CPU ARM11 RAM 128M Flash 256M Monitor Dimension 7 Monitor Resolution 800*480 color LCD I/O Standard：32I/O32 Performance The product stands EMI/Electrical fast transient immunity/Surge immunity tests and conforms to the fourth grade protection standards of GB/T 17626.5-2008. Resistance to vibration conforms to the GB/T 2423.10-2008 Standards. The product stands rigid temperature tests and conforms to the industrial standards of GB/T 2423.102-2008. Applicable Industries Lath, Magnetic tile, Injection molding, etc Programming Language Teach-in programming Embedded Program Function Stacking, Sampling, Defects placement, Return to standby point, Rapid move to placement point Material Storage Function Mold 6000 groups Main Program 200-step-sequence Subroutine 100 subroutines with no limit on step sequence Intelligent Management Function Security password set in terms of five permissions QC Function Quality management with samplings picked and placed periodically Maintenance Function User-defined maintenance schedule F ault Detection Function Auto detection of faults, with fault details recorded PLC Function Integration of robot motion and PLC Backup & Update Function One-click backup & update Via USB flash drive
