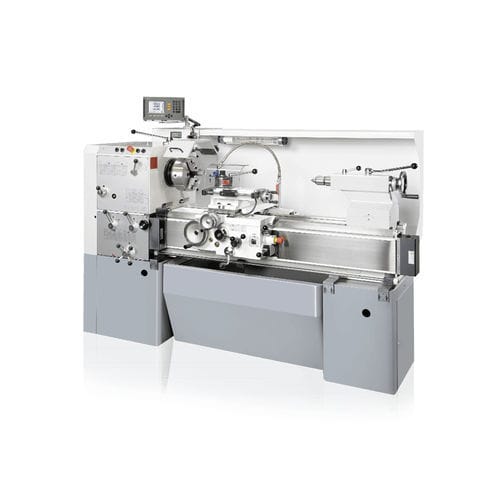

CNC lathe DA210AChorizontal2-axisuniversal
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Spindle orientation
- horizontal
- Number of axes
- 2-axis
- Structure
- universal
- Performance
- high-precision, precision
- Other characteristics
- large
- Associated function
- threading
- Diameter
435 mm
(17.13 in)- Spindle speed
Max.: 2,500 rpm
(15,707.963 rad.min-1)Min.: 20 rpm
(125.664 rad.min-1)- Weight
1,450 kg, 1,700 kg
(3,197 lb, 3,748 lb)
Description
The high quality DA range of universal lathes are characterized by their solid and robust quality and ensure maximum safety and ease of use. They have been a gurantee for the highest precision in combination with high power performance in various applications for decades.
Centre height 210 mm
Distance between centres 1000 mm or 1500 mm
Lead screw and feed rod cover
Brake for main spindle
Toolmakers accuracy in accordance with DIN 8605
High power output and high torque at the main spindle
Frequency converter and speed potentiometer for stepless speed control
Digital speed indicator
Large thread cutting range
Easy operation
Digital readout (option)
