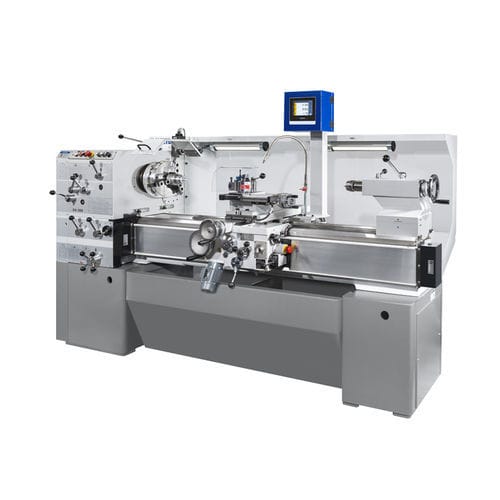

Conventional lathe DA260horizontal2-axisuniversal
Add to favorites
Compare this product
Characteristics
- Control type
- conventional
- Spindle orientation
- horizontal
- Number of axes
- 2-axis
- Structure
- universal
- Performance
- high-precision, precision
- Other characteristics
- large
- Associated function
- threading
- Diameter
535 mm
(21.06 in)- Spindle speed
Max.: 1,500 rpm
(9,424.778 rad.min-1)Min.: 33 rpm
(207.345 rad.min-1)- Weight
1,510 kg, 1,760 kg, 2,050 kg
(3,329 lb, 3,880 lb, 4,519 lb)
Description
The high quality DA range of universal lathes are characterized by their solid and robust quality and ensure maximum safety and ease of use. They have been a gurantee for the highest precision in combination with high power performance in various applications for decades.
Centre height 260 mm
Distance between centres 1000 mm, 1500 mm and 2000 mm
Large spindle bore
Lead screw and feed rod cover
Brake for main spindle
Toolmakers accuracy in accordance with DIN 8605
High power output and high torque at the main spindle
Large thread cutting range
Easy operation
Digital readout (option)
Catalogs
DA 210 and DA 260
2 Pages
