Radial drill VO104electricpowerful
Add to favorites
Compare this product
Characteristics
- Type
- radial
- Power source
- electric
- Other characteristics
- powerful
- Rotational speed
9 rad.min-1, 2,800 rad.min-1
(1.4 rpm, 445.6 rpm)- Drilling diameter
100 mm
(3.94 in)
Description

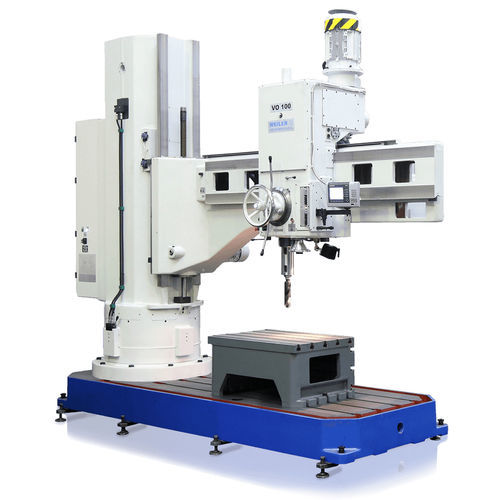

VO104 radial drilling machine: the flagship in the range of WEILER drilling machines.
WEILER’s largest radial drilling machine. Applications include drilling, boring, reaming and thread cutting in one-off as well as batch production.
Advantages of the WEILER VO104 Radial Drilling Machine:
Easy to operate, robust and reliable
Ideal for all types of drilling work
Clearly structured operator panel
Acceptance in accordance with ISO 2423 (corresponds with DIN 8625)
Distance from spindle nose to clamping surface min. 710 mm/max. 2.720 mm
Spindle working range min. 530 mm/max. 4.000 mm
Spindle travel 475 mm
