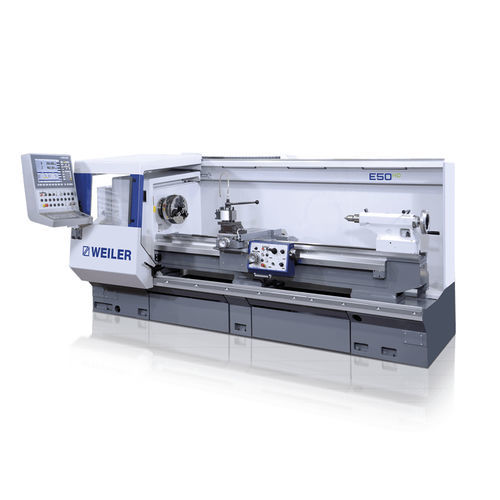

CNC lathe E 50HDhorizontaluniversalpowerful
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Spindle orientation
- horizontal
- Structure
- universal
- Performance
- powerful, high-performance
- Diameter
570 mm
(22.44 in)- Spindle speed
Min.: 1 rpm
(6.283 rad.min-1)Max.: 2,500 rpm
(15,707.963 rad.min-1)- Rapids on X
5,000 mm/min
(3 in/s)- Rapids on Z
10,000 mm/min
(7 in/s)- Weight
3,800 kg, 4,100 kg, 4,300 kg, 4,600 kg
(8,378 lb, 9,039 lb, 9,480 lb, 10,141 lb)
Description
The powerful universal lathe in the WEILER E-Series range with optimum accessibility for the demanding turner.
The right choice for high turning performance in areas such as production, tool making as well as repair and maintenance.
High quality, energy-efficient, precise and universally usable. It impresses through:
State-of-the-art control and drive technology
Straight-forward operating and programming
Extreme accuracy
Durability
User-friendly ergonomics
Extremely small footprint
and an extensive range of accessories
Distance between centres 1000 mm – 2000 mm
Max. High torque of 1300 Nm
Spindle bore 83 mm or 165 mm (optional)
Extremely easily accessible machining area
Display unit with 15“ TFT screen
Ingenious, user-friendly WEILER graphical user interface
Operating panel with handwheels moves with the bed slide to enable precise manual machining
“e-TIM” energy conservation system minimizes power consumption
Machine accuracy to DIN 8605
