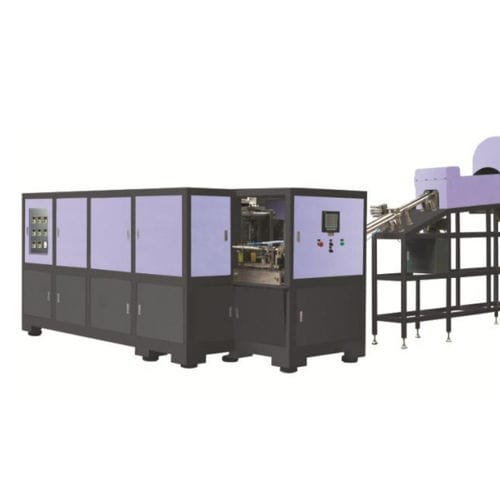

Stretch blow moulding machine MP series
for PETfor PPfor PET bottles

Stretch blow moulding machine - MP series - Weili Plastics Machinery (HK) Co., Ltd. - for PET / for PP / for PET bottles
Stretch blow moulding machine - MP series - Weili Plastics Machinery (HK) Co., Ltd. - for PET / for PP / for PET bottles
Stretch blow moulding machine - MP series - Weili Plastics Machinery (HK) Co., Ltd. - for PET / for PP / for PET bottles - image - 2
Stretch blow moulding machine - MP series - Weili Plastics Machinery (HK) Co., Ltd. - for PET / for PP / for PET bottles - image - 3
Stretch blow moulding machine - MP series - Weili Plastics Machinery (HK) Co., Ltd. - for PET / for PP / for PET bottles - image - 4
Stretch blow moulding machine - MP series - Weili Plastics Machinery (HK) Co., Ltd. - for PET / for PP / for PET bottles - image - 5
Stretch blow moulding machine - MP series - Weili Plastics Machinery (HK) Co., Ltd. - for PET / for PP / for PET bottles - image - 6
Add to favorites
Compare this product


Characteristics

Type
stretch
Treated material
for PET, for PP
Finished product
for PET bottles, for PP bottles
Other characteristics
2-cavity, 4-cavity, fully-automatic, semi-automatic, for oil industry applications, for the cosmetics industry, for the beverage industry, mono-cavity, two-stage
Hollow part volume

Min.: 0.8 l
(0.2 gal)

Max.: 20 l
(5.3 gal)

Overall width

Min.: 120 mm
(4.7 in)

Max.: 253 mm
(10 in)

Overall lenght

Min.: 270 mm
(10.6 in)

Max.: 368 mm
(14.5 in)

Overall height

Min.: 150 mm
(5.9 in)

Max.: 190 mm
(7.5 in)

Description

MP-Series is the latest fully/semi automatic stretch blow moulding machine series which is very flexible for a wide product range. It is specially designed for PET/PP Bottles with volume up to 20L. Machine models in 1-cavity to 4-cavity are possible according to different productivity requirements. Both the preform heating and bottle blowing processes are combined into the same machine. There are also optional items available for additional order (including the automatic preform feeder and bottle ejection) to become a fully automatic machine. Stackable Bottle Many brand owners have realized that stackable is not only an idea for storage & transport convenience, but it also provides a sense of strong visual impact and playful incentive to consumers. With strong R&D support from WEI LI, its customers have successfully developed many festival packaging containers with the stackable concept to increase the marketability of their products! WEI LI has assisted customers to develop a PP hot-fill bottle in their reheat stretch blow moulding machine for beverage bottle to replace the old PP bottle moulded in extrusion blow moulding machine. WEILI has started helping customers shifting their baby feeding bottles production from PC to PP since 2001. Since many countries has banned the use of baby feeding bottles containing BPA, PP has become the best alternative. Due to the recyclable and reusable features of PP material, PP sports bottle is appealing to the Eco-Friendly market.
