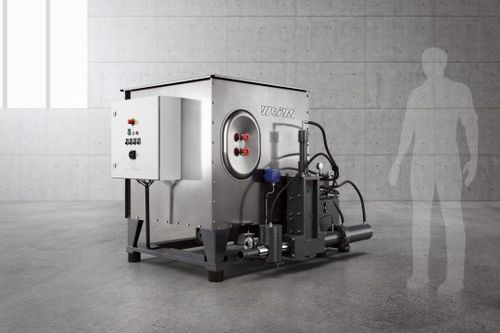

The C 140 is particularly suitable for small and medium-sized plants whose required throughput rate does not exceed 50-80 kg/h or 200 to 400 kg/day. Virtually any suitable material can be briquetted, such as wood, polystyrene, foams, paper or biomass. All machines are available as left-hand or right-hand versions. Mounted on a stable base frame, this machine ensures quick installation and makes mobile use possible.
Generous feed hopper as material buffer
C Series briquetting presses offer a large capacity for material to be compressed. Depending on the space requirements, the press unit and the hydraulic unit can be flexibly installed to the right or left of the hopper. The agitator and the material screw conveyor are located at the bottom of the hopper. If required, the hopper can be equipped with a fill level monitoring system which automatically switches off the briquette press as soon as the material quantity falls below a defined level.
Vertical material pre-compaction in the filling tower
The screw conveyor below the feed hopper transports a defined quantity of material into the filling tower. There, vertical pre-compaction takes place, with a slide pressing the material into the press sleeve below. A particularly solid briquette can then be produced after the subsequent clamp compaction.
Robust hydraulics with separate oil tank
The compact hydraulic unit is located directly next to the feed hopper. It is temperature controlled. The pump motor is designed for long service life.
Proven clamping technology for high-strength, round briquettes up to 40 mm Ø
The extremely wear-resistant, chrome-plated pressing clamp is surrounded by a hydraulic closing cylinder.
