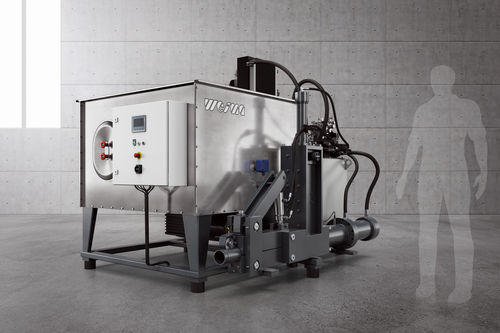

Biomass briquetting machine TH 814 / 820 S

for expanded polystyrenefor wastefor cylindrical briquettes

The modular design of the TH 814 / 820 S allows exact adaptation to suit your existing premises or production conditions. Briquettes can be made from materials such as wood, polystyrene, foam, light alloy, paper or biomass – with throughput rates and briquette quality to meet high industrial demands (precondition: material residual moisture <= 18%). Nearly every individual solution can be achieved, e.g.: Duo, trio or quattro designs to increase throughput rates and availability of the machine. Large material hopper for more buffer volume The galvanized hopper, into which the material to be briquetted is fed either manually via a conveyor belt or a screw conveyor, is equipped with a rotating agitator and a discharge screw at the bottom. It is available in dimensions of 1,400 x 1,400 mm or 2,000 x 2,000 mm, depending on the required buffer volume. The machine can be used in automatic mode by means of fill level monitoring. Convenient operation with advanced Siemens PLC control We manufacture all briquetting press control cabinets ourselves in our German plants in Ilsfeld, Abstatt and Annaburg. For this purpose, we use only brand-name components – and this also applies to our machine control system. The high-quality Siemens PLC control system with touch display optimally coordinates the components with each other, which makes it possible to achieve a consistently high briquette quality. Highly compressed round briquettes thanks to reliable toggle-joint mechanism By using a so-called toggle lever mechanism, a significantly higher pressing force is achieved compared to the classic pressing clamp - up to 1,250 kg/cm2.
