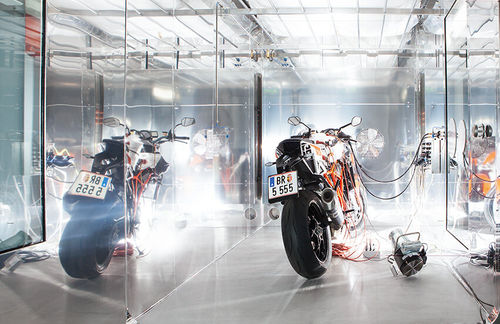

Emission test chamber SHED

for automobilesfor motorswalk-in

Sealed Housing for Evaporative Determination (SHED) test chambers are used for evaporative emissions testing on vehicles, engines and car components to enable production in compliance with global emissions legislations. SHED test chambers are used to measure the hydrocarbon emissions of cars, motor bikes and car components. The legislators (EU, EPA, CARB, NSCN) stipulate the permissible emission limits and the verification procedure. When emissions testing, the vehicle manufacturer must prove that the legal emissions limits are complied with for the vehicle to be approved. Low background emissions are an important requirement for conclusive test results. In accordance with the EPA/CARB/EN standards, the limit may not exceed a value of 0.05 g. For our drive-in standard SHED vehicle test chamber, we guarantee background emissions of better than 0.007 g, measured after 4 hours in accordance with EPA sec. 86.117/96a. The verification is undertaken in the SHED test chamber, equipped with the necessary analytic technology and test rig software for implementing tests and documenting results from emissions testing. Reliable measurements are ensured by: • Low background emissions clearly below the statutory specifications • Delivery of completely assembled systems • Very short assembly and commissioning times on site • Variable size of test chamber, tailored to the sample (drive-in, walk-in, mini-SHED, micro-SHED, running loss SHED, drive-in for cars (driving conditions on dynamometer)
