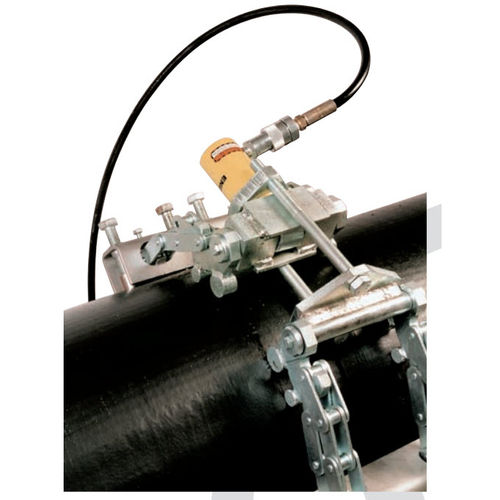

Pipe hydraulic clamp HP series

The “easy-to-handle”, flexible system to be used for pipe-to-pipe, pipe-to-bend and pipe-totee or flange – align and adjust and ready to weld in less than 10 minutes! The HP Clamp is the only hydraulic chain clamp in the world which can operate on pipe diameters from 6” (168 mm) to 60” (1524 mm).The HP Clamp is able to align and adjust pipes and fittings with wall thickness up to 1” (25 mm). To meet the requirements from pipe manufacturers, nuclear, offshore and petrochemical industries, all parts of the HP Clamp that makes contact with the pipes, are made of stainless steel to avoid markings and contamination on the pipes. The jack-bars are adjustable and removable. This makes the HP Clamp usable on smaller pipe dimensions. The HP Clamp consists of: 1 Hydraulic cylinder, 1 Clamping system, 1,8 m hose, 1 Hydraulic hand pump, Jack-bars (number according to size), mounted on two chains, 1 Ratchet brace 10 mm, 1 Ratchet brace 24 mm, 1 Aluminium tool box. All HP Clamps are available with extra chain for all pipe-diameters and extra jack-bars. Other sizes on request.
